To locate a new site

1.Click the Address Search button on the standard toolbar.

If you already had a map loaded you will be prompted to save that map before another is loaded. We recommend that you save any loaded map before locating another.

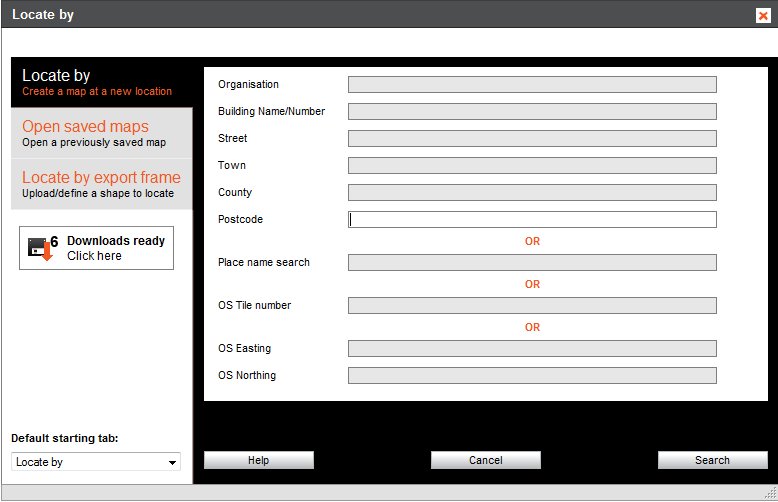

The Locate by dialog box will appear:

Note

The Locate by dialog box also contains an Open saved maps tab to allow you to search through your previously saved maps, and a Locate by export frame tab to allow you to locate to your site by the area you wish to export . You can select which tab is automatically displayed by default by clicking on the Default starting tab drop down menu in the bottom left hand corner of this window.

If you have any new downloads available you will also be notified on this window.

2.Enter as little or as much information as you choose.

Text box	Description
Organisation	Enter a company or organisation name i.e. Landmark Information Group. You need to combine this with either: •Town •County •Partial or full Postcode
Building name/number	Enter a building number, e.g. 27, or building name, e.g. Pine Cottage. You need to combine this with •Town •County •Partial or full Postcode
Street	Enter a street or road name, e.g. Harlech Close. You need to combine this with either: •Town •County •Partial or full Postcode
Town	Enter a town or city name, e.g. Basingstoke. If you only enter a Town, Promap will search for places and show you a list together with the type of place (eg City, Village, Hamlet) You can combine it with either: •Organisation •Building name/number and Street •Street •Partial or full Postcode
County	Enter a county. You need to combine it with either: •Organisation •Building name/number and Street •Street
Postcode	A full postcode will show you a list of all properties in that postcode. You need to combine a partial postcode with either: •Organisation •Building name/number and Street •Street
Place name search	Enter the name of a natural feature (eg lake or forest), farm or other special feature such as a museum.
OS Tile number	Enter a Tile number, e.g. TL5904SW. Promap will convert the OS tile number you provide in to the closest Easting and Northing coordinates.
Easting	Enter the Easting, e.g. 461289
Northing	Enter the Northing, e.g. 152283.

3.Click Search.

If Promap finds more than one result, it will display the Locate by - Results dialog box. If it only finds one result, it will go straight to the Locate by - Confirmation dialog box and you can go to To select a map layer and marker style for the next step.

You can click the Back button if the results are not the ones you wanted. Then redefine your search.

4.On the Locate by - Results dialog box click the property you want to see.

The Locate by - Confirmation dialog box will appear. At the top you will see the property you selected.

You are now ready to display your map using the map layer selector. Go to To select a map layer and marker style.
